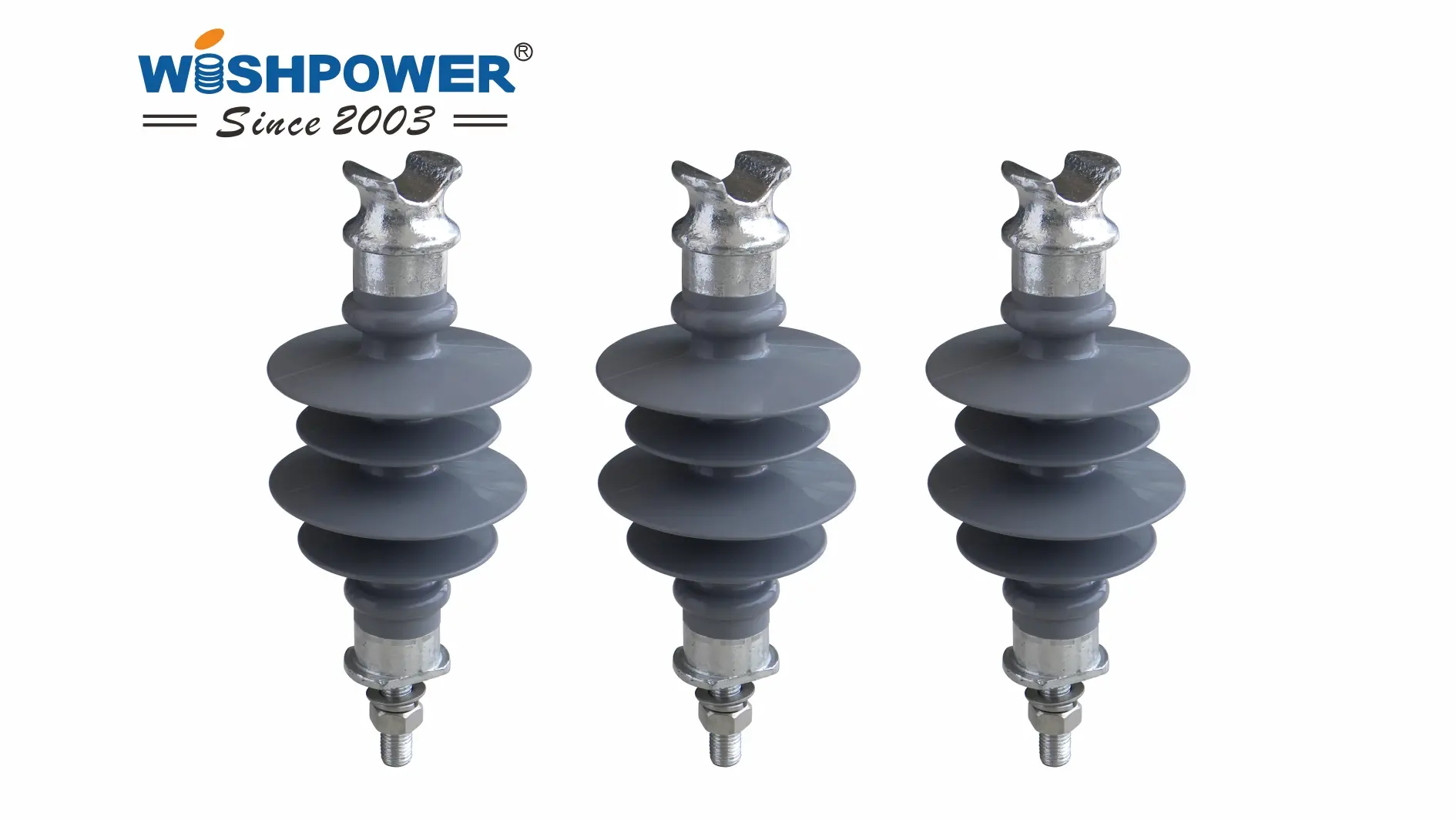

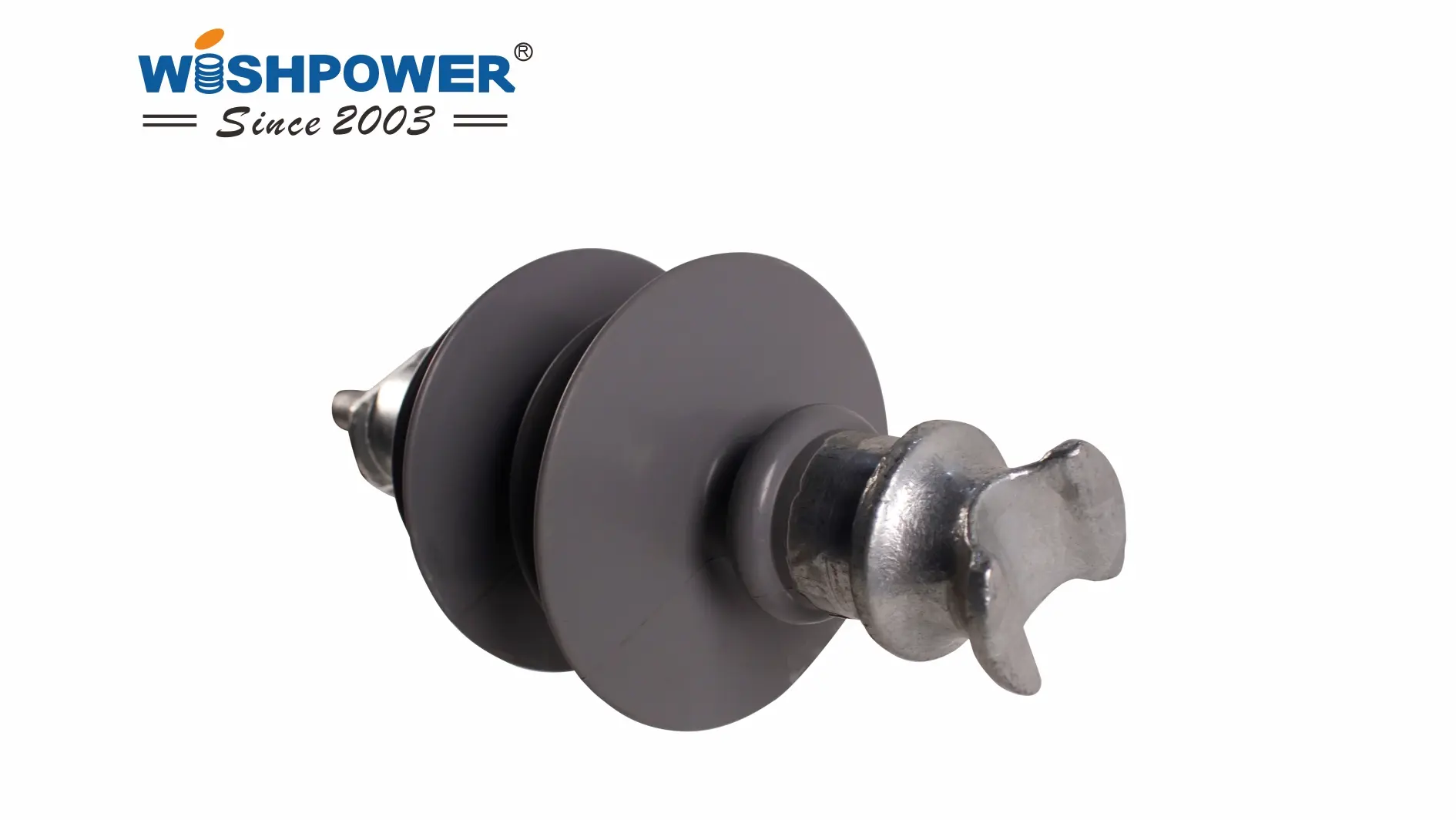

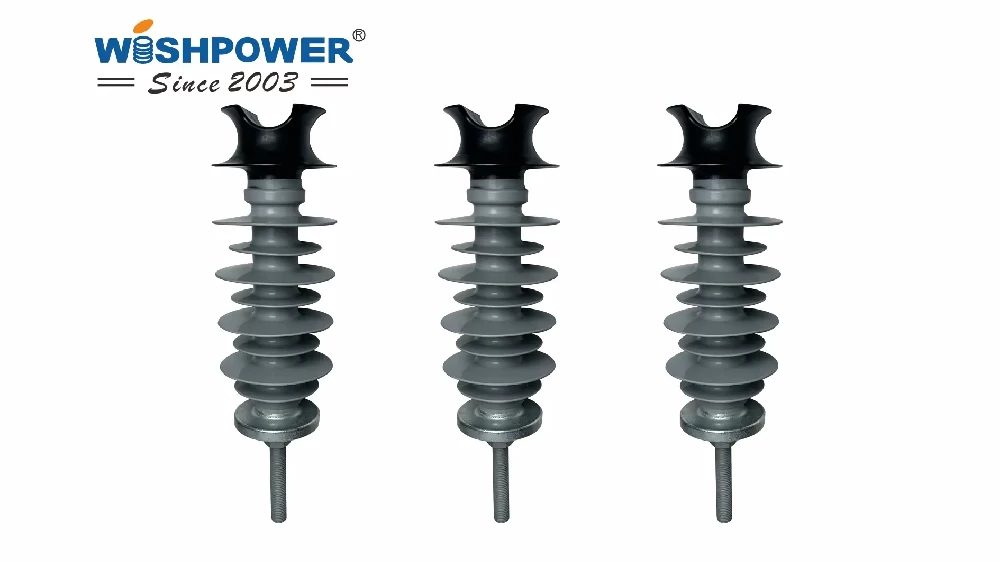

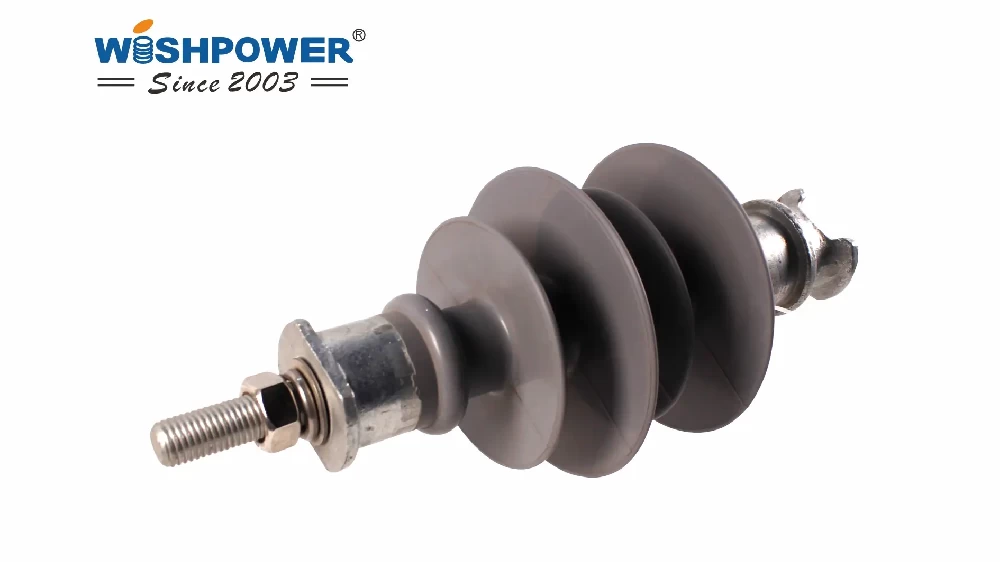

11 kv pin insulator price and specifications

Brand: WISHPOWER
Standard: GB/T 19519-2014, IEC 61109
Features: The injection process is adopted, the core rod and the sheath are bonded seamlessly, the internal insulation performance is good, and the interface breakdown phenomenon can be avoided
Lightweight, Durable, High-strength, Weather-resistant, Low-maintenance, High-voltage
Structure: It is composed of an umbrella sleeve, core rod, and end fittings.
Color: Red, Grey, Blue, Yellow, Other
The product's dimension, characteristics, connection method, and shed color can be designed and manufactured according to the customer's specific requirements.

Contact Now

DESCRIPTION

Product Description

Wishpower 11 kV pin insulators are made of high-strength composite materials using advanced manufacturing processes. They feature superior corrosion resistance, weatherability, and mechanical durability. The lightweight design allows easy installation on various high-voltage lines. Internally reinforced with premium fiberglass, these insulators maintain stable electrical insulation over long periods, effectively reducing maintenance costs.

Technical Specifications

Parameter	Value	Description
Rated Voltage	11 kV	Suitable for medium voltage lines
Maximum Withstand Voltage	35 kV	Complies with IEC standards
Material	Composite (Fiberglass + Silicone Rubber)	High-strength, weather-resistant
Mechanical Strength	12 kN	Can withstand strong winds and mechanical stress
Length	280 mm	Standard pin insulator size
Diameter	60 mm	Top end design dimension
Weight	0.9 kg	Lightweight design for easy installation

Application Industries

Power transmission and distribution
Urban and rural medium voltage lines
Wind and solar power stations
Industrial high-voltage supply systems
Power engineering construction and maintenance

FAQ / Common Questions

What is the price of 11 kV pin insulators? Prices vary depending on quantity and specifications. Please contact us for a quote.
Which standards does the product comply with? Complies with IEC 60815 and GB/T 11033, ensuring reliable electrical and mechanical performance.
Is installation convenient? Lightweight design with standard fittings allows quick installation on high-voltage lines.
How is the weather resistance? High-quality silicone rubber exterior resists UV, corrosion, and extreme weather conditions.
What are the suitable application scenarios? Ideal for medium-voltage lines, distribution systems, and industrial high-voltage equipment.
