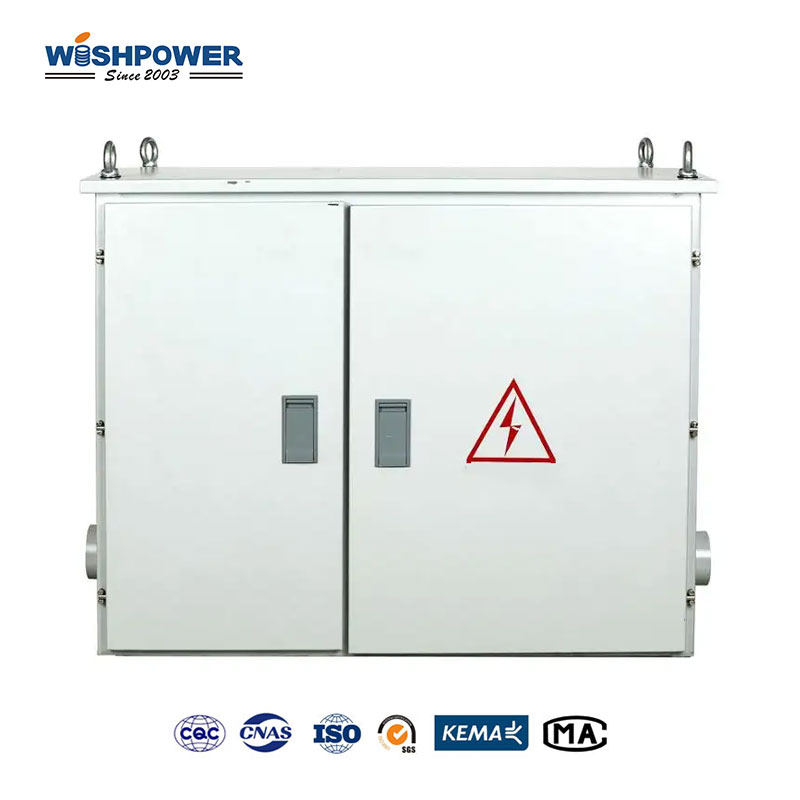

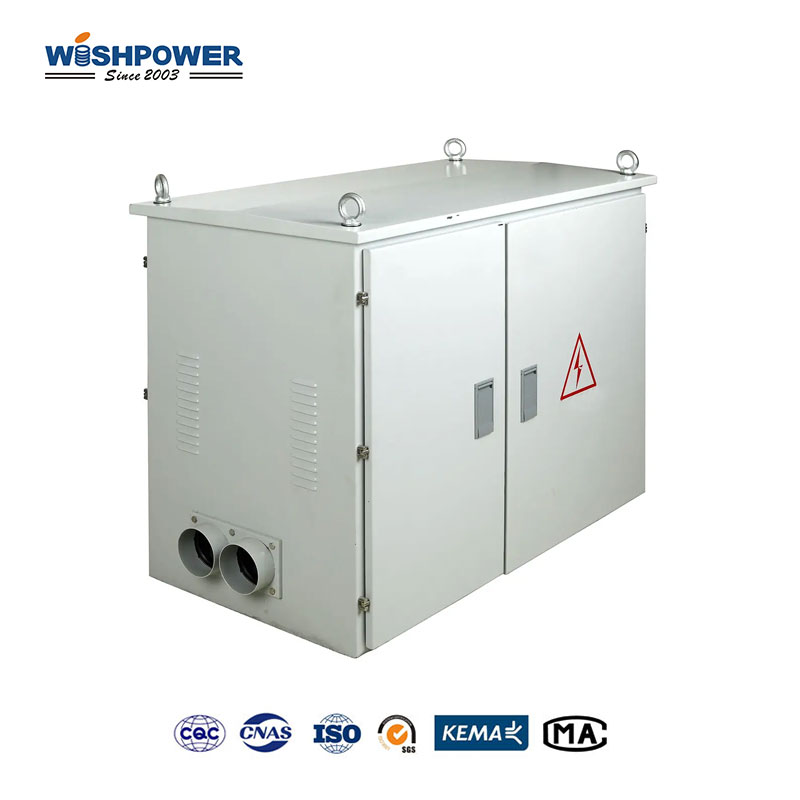

Fast Switched Series Compensation Device

Product Overview

Fast Switched Series Compensation Device

Fast Switched Series Compensation Device is a project-oriented electrical product used where reliable operation, correct system coordination and suitable environmental performance are required. The final configuration should be selected from the actual electrical system, installation method, mechanical interface, operating environment and customer specification rather than from the product name alone.

WishPower supplies Fast Switched Series Compensation Device for utilities, EPC contractors, industrial users and international power projects. During technical review, the customer can provide drawings, single-line diagrams, reference specifications, interface dimensions and operating conditions so that the product configuration can be coordinated before production.

Product Features

• Fast switching response for networks with rapidly changing reactive-power demand.

• Reactive power compensation can support power-factor improvement and voltage-quality management.

• Control strategy can be configured according to measured system conditions.

• Protection, monitoring and alarm functions can be integrated into the project cabinet.

• Step capacity and switching logic are selected according to load characteristics.

• Communication interfaces can be coordinated for local or supervisory monitoring.

Technical Specifications

Applications

• Industrial plants with rapidly varying loads

• Utility distribution systems

• Mining and process facilities

• Renewable-energy connection points

• Networks requiring power-factor correction

• Voltage-quality improvement projects

Compensation Capacity Selection

Fast switched compensation should be sized from measured reactive-power demand and load fluctuation. Historical power-factor records, load curves and switching frequency requirements provide a better basis for design than a single maximum-load value.

WishPower Project Support

WishPower supports project-based supply from inquiry and technical review through drawing confirmation, production coordination and export delivery. For Fast Switched Series Compensation Device, customers should provide the available specification, drawings, required quantity, application conditions and destination so that the configuration can be reviewed accurately.

Where an exact rating or dimension is not yet available, WishPower can first review the system information and identify the technical data that must be confirmed before quotation or production.
