Insulator Tensioner – Insulator Wire Clamp for 35kV Overhead Line

Professional manufacturer of guy grip clamps, designed for 35kV and below overhead distribution lines. Replace traditional binding methods to prevent conductor looseness, damage, or flashover. Durable, insulated, and easy to install. Factory direct supply with customization service.

Contact Now

DESCRIPTION

Product Description

The guy grip clamp, also known as an insulator wire fixing clamp, is designed to work with crossarm insulators for securing overhead conductors. It effectively replaces traditional aluminum wire binding methods, solving common problems such as conductor loosening, snapping, flashover, and insulation damage. By using this clamp, the safety and reliability of overhead distribution lines are significantly improved.

Technical Parameters

Rated Voltage: up to 35kV
Operating Temperature: -45℃ ~ +45℃
Tensile Strength Test: 3000N, no fracture
High-Temperature Pressure Test: 90℃, 24h, 2kg, no cracking or deformation
UV Resistance: 950 hours without cracking or discoloration
Aging Test: 168h at 80℃, no damage or cracks
Salt Spray Test: 5% NaCl solution, 35℃, 8h, no corrosion

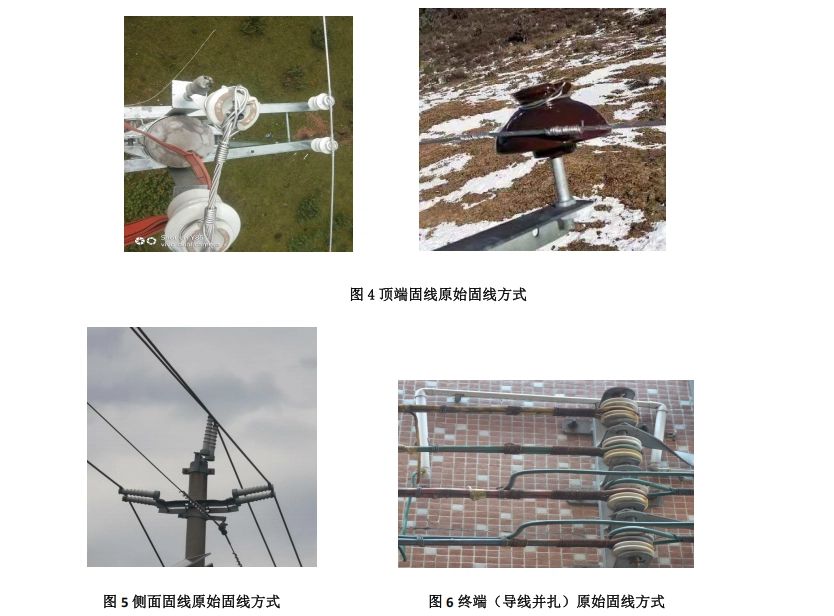

Original top fixing method

Key Advantages

Fully Insulated Design – made of cable-grade insulation material, anti-aging, no rust or oxidation.
Safe and Reliable – embracing structure prevents conductor insulation damage, eliminating electric shock risks.
Constant Grip Force – secure clamping, no loosening or slipping under long-term operation.
Standardized Installation – unified design avoids irregular workmanship caused by manual binding.
Easy and Efficient – saves labor cost, reduces installation time, and improves project efficiency.

Application Fields

Overhead distribution lines (1kV, 10kV, 35kV)
Pin type insulator wire fixing
Crossarm porcelain insulator top and side fixing
Conductor terminals or line return fixing

Top fixed line now fixed line mode

Product Selection

Product	Model	Voltage Level	Color Options	Fixing Method	Suitable Insulators
Guy Grip Clamp	YMT-50/300-D2	35kV, 10kV, 1kV	Yellow, Green, Red, Black	Top fixing	Pin type insulators (P-6T, P-10T, P-15T, etc.), PS15, PS20, SC-210Z, SC-280Z
Guy Grip Clamp	YMT-50/300-C2	35kV, 10kV, 1kV	Yellow, Green, Red, Black	Side fixing	SC-185, SC-210, SC-280 series side fixing insulators
Guy Grip Clamp	YMT-10/300-DG	35kV, 10kV, 1kV	Yellow, Green, Red, Black	Terminal fixing	Suitable for conductor terminals or line return fixing

Manufacturer Supply & Customization

As a professional power line hardware and insulator fitting manufacturer, we provide a full range of guy grip clamps with multiple models and specifications. OEM/ODM customization is available for color, size, and design. Our products are widely supplied to power utilities, engineering contractors, and exported to overseas markets.

👉 Contact us today to get the latest price list and technical support for your overhead line projects!
