Horizontal Line Post Insulator Manufacturer – Composite Support Insulator for 10

Products

Electrical & Grid

Composite Insulator

Horizontal Line Post Insulator

√ Compact Horizontal Design: Ideal for crossarm-mounted configurations.
√ High Electrical Performance: Silicone rubber material provides superior insulation.
√ Lightweight and Strong: Easier handling than traditional porcelain types.
√ UV and Aging Resistance: Suitable for extreme weather and high pollution.
√ Customizable Options: Mounting types, voltage class, shed shape can be tailored.

Contact Now

DESCRIPTION

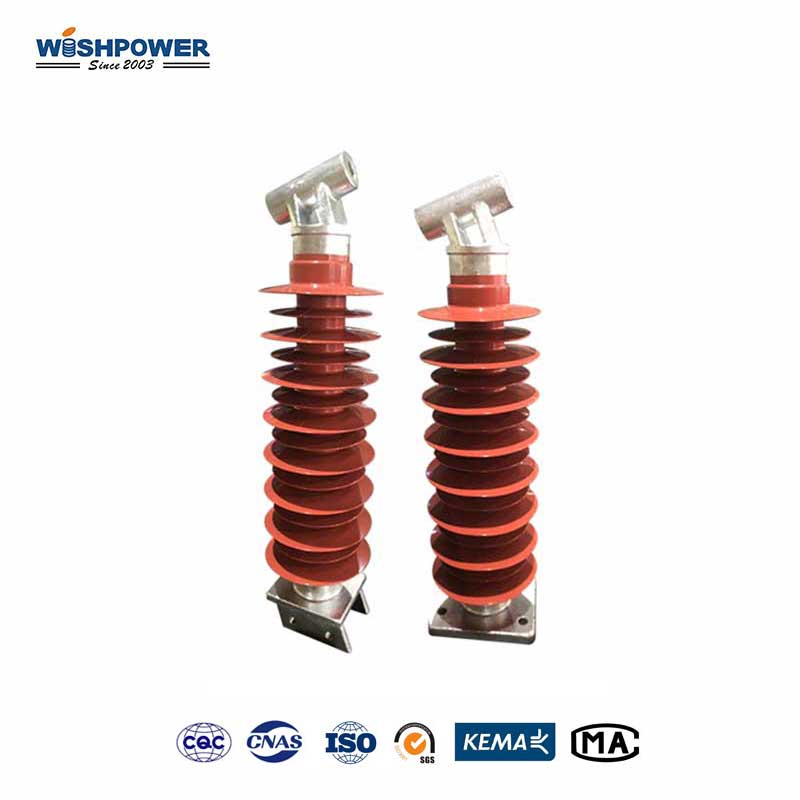

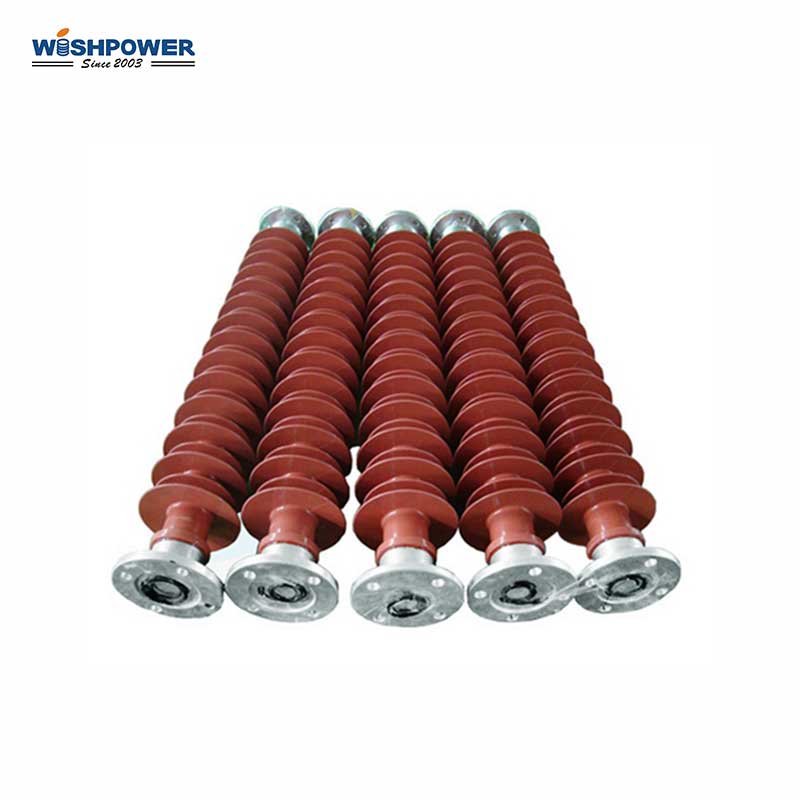

Product Description: Horizontal Line Post Insulator

The Horizontal Line Post Insulator is a key component in overhead transmission and distribution systems, primarily used for insulating and supporting conductors on crossarms. Installed horizontally, it provides reliable mechanical support while maintaining electrical insulation between the line and grounded structures.

WishPower’s line post insulators feature a composite design with silicone rubber sheds and fiberglass rods, offering excellent resistance to electrical stress, environmental aging, and contamination. Rated for voltages between 10kV and 66kV, they are ideal for use in polluted, coastal, or high-altitude regions.

OEM customization is available for mounting style, dimensions, and voltage class, ensuring compatibility with global project requirements.

Technical Specifications

Item	Specification
Product Name	Horizontal Line Post Insulator
Insulation Material	Silicone rubber with epoxy fiberglass core
Mounting Type	Bolt-on / Flange / Crossarm horizontal type
Rated Voltage	10kV / 15kV / 24kV / 33kV / 66kV
Bending Load Strength	≥10kN / 12.5kN / 16kN (optional)
Minimum Leakage Distance	320mm – 1000mm (depending on rating)
Shed Configuration	Single / Double / Anti-pollution design
Hardware Fittings	Hot-dip galvanized steel / Aluminum alloy
Temperature Range	-40℃ to +60℃
Standards	IEC 61109 / ANSI C29.7 / GB 19519

Key Features

Compact horizontal design suitable for crossarm installations.
Excellent electrical insulation using weather-resistant silicone rubber.
Lightweight and high mechanical strength for easier installation.
Long-term aging, UV, and contamination resistance.
Customizable voltage, shed configuration, and mounting style.

Application Scenarios

Overhead distribution lines in urban and rural areas
Transmission systems in polluted or coastal zones
Line conductor support on steel crossarms
Solar and wind energy grid connections
Bus bar and switchgear insulation support

Manufacturer Advantages

WishPower is a certified and experienced manufacturer offering custom composite insulator solutions for global clients. With advanced production lines and in-house engineering teams, we ensure quick delivery, stable quality, and compliance with international standards like IEC and ANSI.

We support small batch orders, OEM branding, and full export services including test reports and logistics assistance.

WishPower is a global manufacturer of power system equipment. If you have any purchasing needs, feel free to contact us for the latest product quotation or leave us a message.
