25kV Railway Insulators for Catenary Systems USA

Brand: WishPower
Catalog ID: FQX , FQXS, FQB,FQBS, FS, FZ,FQD, FQX, FQBG,CS, FXWP,
Types: Bar / Bracket / Cross arm/ Post / Arch bracket/ AF wire hanging/ Overall/ Disc /Low headroom tunnel / Bus post
Standard： TB/T3199.2-2008 IEC 61109
Features: Made of silicone housing, core rod, and end fitting.
– Light weight, small volume, it can be easily transported and installed
– High mechanical strength. stronger anti-shock performance, uneasy for cracking.
– Good performance of anti-pollution
– Convenient maintenance
Customization method: According to your drawings or other requirements

Contact Now

DESCRIPTION

Product Overview:

Railway Insulators for Catenary Systems USA are essential components in overhead contact line systems, ensuring reliable electrical isolation in electrified rail networks. WishPower supplies a full range of composite insulators specifically designed for North American railway standards, including ANSI C29 and AREMA RP-8, widely used in 25kV and 2×25kV catenary systems.

Our insulators are made of high-quality HTV silicone rubber, ECR fiberglass core rods, and corrosion-resistant hot-dip galvanized fittings. Designed with modular construction, these insulators can be customized to match different mechanical loads, creepage distances, and installation types.

Technical Specifications

Item	Details
Product Name	Composite Railway Insulator for Catenary
Voltage Class	25kV / 27.5kV / 35kV / 2×25kV
Withstand Voltage	≥130kV (Power Frequency) / ≥250kV (Lightning Impulse)
Creepage Distance	550mm–1200mm (Customizable)
Material Composition	HTV Silicone + ECR Rod + Galvanized Fittings
Type	Suspension / Tension / Bracket Type
Interface Standards	Y-clevis / Eye-ball / Socket / Threaded
Temperature Range	-40°C to +55°C
Mechanical Strength	≥8kN to ≥20kN (Model-dependent)
Standards Compliance	ANSI C29, AREMA RP-8, IEC 61109

Key Features

High Tensile Strength: Suitable for high-tension overhead lines with strong fiberglass core.
Pollution Flashover Resistance: Silicone sheds ensure excellent hydrophobicity and self-cleaning.
Superior Weather Durability: UV, salt spray, and acid rain resistant for all climates.
Customizable Design: Flexible interface, electrical rating, and structural layout.
Lightweight & Maintenance-Friendly: 50% lighter than porcelain or glass types.

Quality & Testing

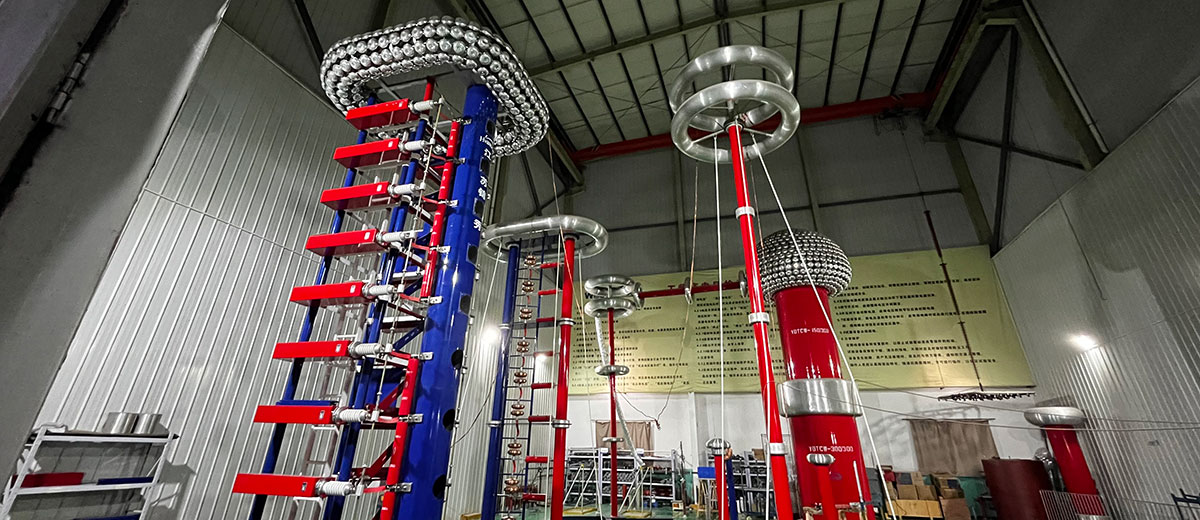

WishPower’s railway insulators undergo full quality inspections and testing, including:

Power frequency dry/wet withstand tests
Lightning impulse voltage withstand test
Thermal-mechanical loading test
Accelerated aging test
Fitting strength and torque tests
X-ray nondestructive inspection

Application Scenarios

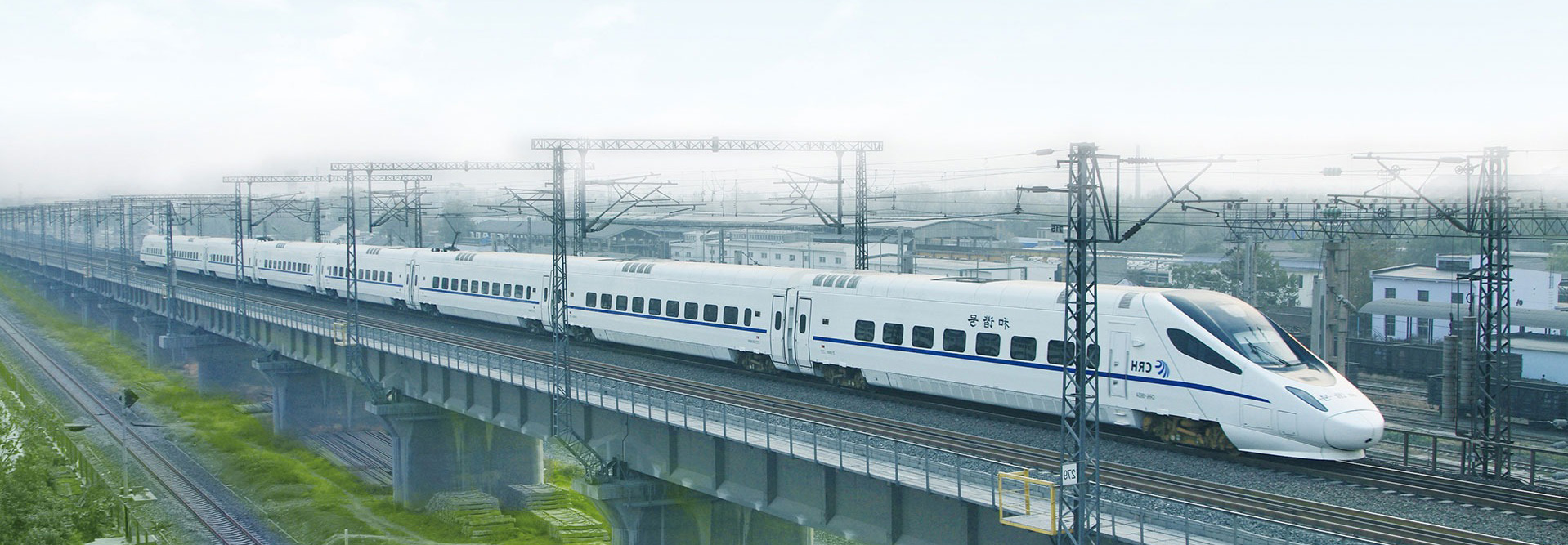

25kV/2×25kV catenary systems in North America
Light rail and metro isolation applications
High-speed rail overhead systems
Freight line electrification in USA rail networks
Harsh environmental conditions: desert, snow, salt fog zones

Customization Services

ANSI/AREMA/IEC interface types
Specific creepage distance and voltage rating
Branded packaging and laser marking
Sample prototyping and fast mass production

Manufacturer Introduction

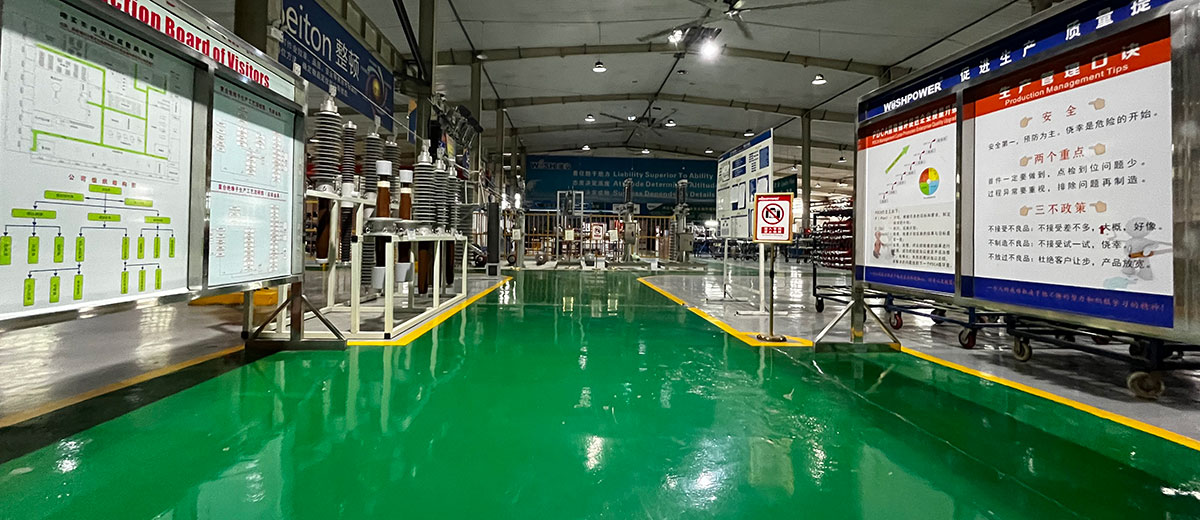

WishPower operates advanced production lines for polymer insulators, supplying to more than 30 countries. With international certifications and experience serving major railway clients, we support long-term cooperation and local service partnerships.

WishPower is a global manufacturer of power system equipment. If you have any purchasing needs, feel free to contact us for the latest product quotation or leave us a message.
