Polymer Insulator Manufacturing Plant

Products

Electrical & Grid

Composite Insulator

polymer insulator manufacturing plant

√ Brand: WISHPOWER
√ Catalog ID: FK、FXBW、FS、FP、FPEG、FYTX...
√ Standard: GB/T 19519-2014, IEC 61109
√ Features: The injection process is adopted, the core rod and the sheath are bonded seamlessly, the internal insulation performance is good, and the interface breakdown phenomenon can be avoided
√ Lightweight, Durable, High-strength, Weather-resistant, Low-maintenance, High-voltage
√ Material: FRP tube, High-quality silicone rubber, Hot-dip galvanized steel, others
√ Color: Red, Grey, Blue, Yellow, Other
√ Customization method: According to your drawings or other requirements

Contact Now

DESCRIPTION

Product Description:

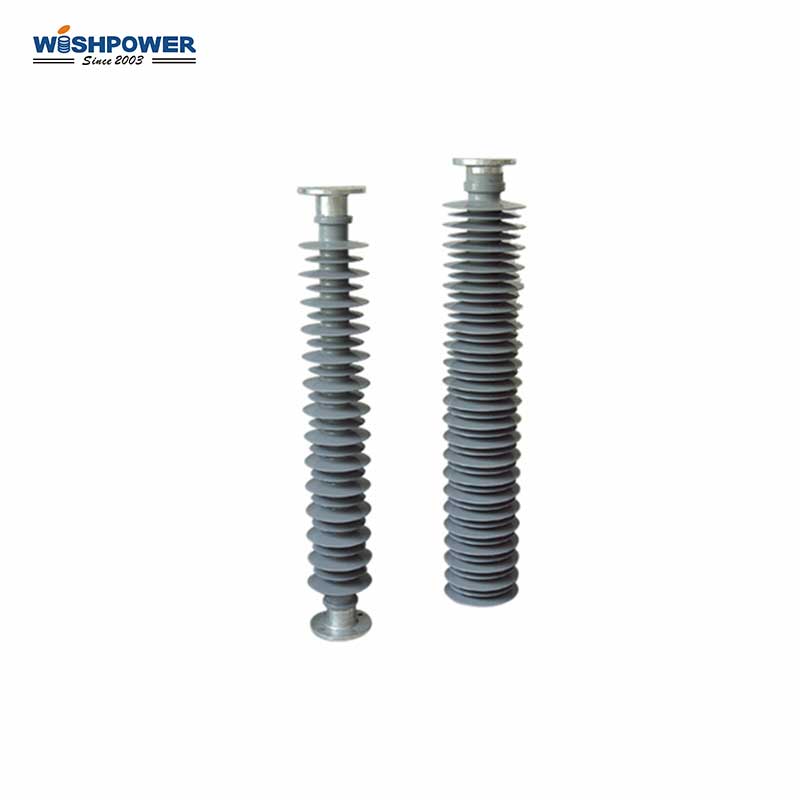

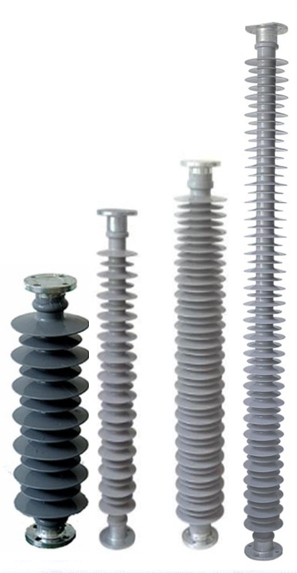

A polymer insulator manufacturing plant specializes in producing composite insulators used for high-voltage transmission and distribution systems. These insulators consist of a fiberglass core rod, silicone rubber housing, and metal end fittings. Compared to traditional ceramic insulators, polymer insulators are lighter, more durable, and highly resistant to pollution and weathering.

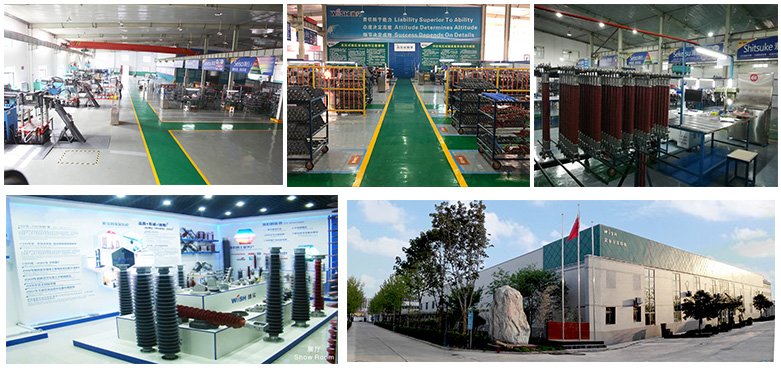

WishPower operates a modern manufacturing plant equipped with automated injection systems, vulcanization equipment, and mechanical test labs. Our products comply with IEC 61109 and GB standards, covering voltage ratings from 10kV to 220kV with various structural and dimensional customization options.

Technical Specifications

Item	Specification
Product Name	Composite / Polymer Insulator
Voltage Class	10kV / 24kV / 35kV / 66kV / 110kV / 220kV
Insulator Type	Suspension / Pin / Post / Rod Type
Core Material	Fiberglass reinforced epoxy (FRP)
Housing Material	High-grade silicone rubber
Metal Fittings	Ball/socket, U-clevis, Y-clevis, flange
Bending Strength	≥ 8kN (customizable)
Creepage Distance	Per IEC or customer specs
Standards	IEC 61109 / GB/T 19519

Key Features

Lightweight & durable structure, easy installation and transport.
Superior hydrophobic performance and pollution resistance.
UV and aging resistant, long outdoor life.
High mechanical strength for tension, bending, and torsion.
Available for multiple voltage levels and end fitting types.

Testing & Quality Assurance

WishPower enforces strict quality control, including routine and type tests such as:

Power frequency dry and wet withstand voltage
Lightning impulse withstand testing
Mechanical tension and bending strength tests
Creepage and hydrophobicity evaluation
Thermal cycling and cold shock resistance
Torque and end fitting mechanical test

Application Scenarios

High-voltage overhead transmission lines
Distribution networks in rural and urban areas
Railway electrification systems
Solar and wind power stations
Substation busbar and post insulation

Customization Services

WishPower offers full customization, including:

Voltage level and creepage distance
End fitting design and mounting types
Color, label, and laser marking
Pollution and lightning-resistant models
OEM/ODM packaging and documentation

Manufacturer Profile

WishPower is a large-scale polymer insulator manufacturer with over 300,000 units annual capacity. Our products are exported to 40+ countries, trusted in utility grids and industrial energy projects. With IEC-compliant production and fast delivery, we support international partners with flexible, reliable insulator solutions.

WishPower is a global manufacturer of power system equipment. If you have any purchasing needs, feel free to contact us for the latest product quotation or leave us a message.
