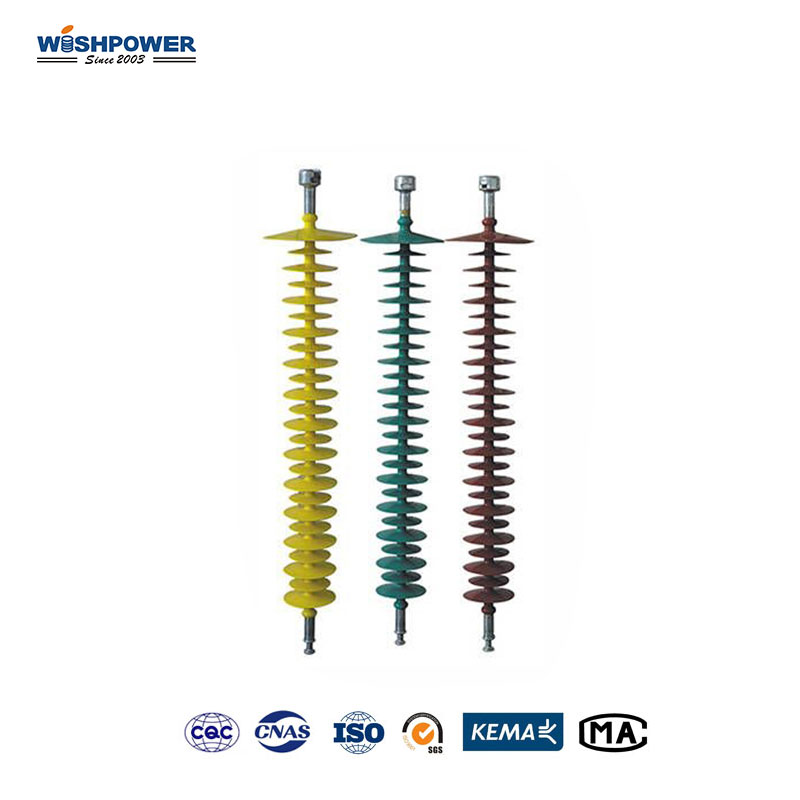

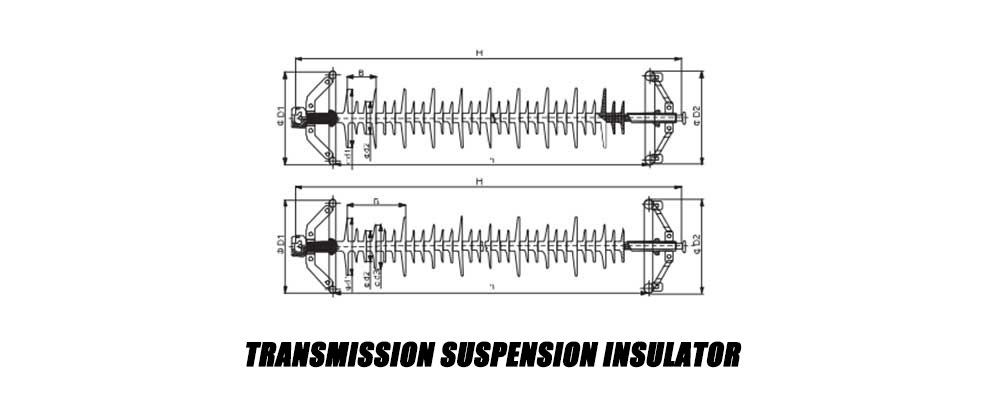

Transmission Suspension Insulator

Product Overview

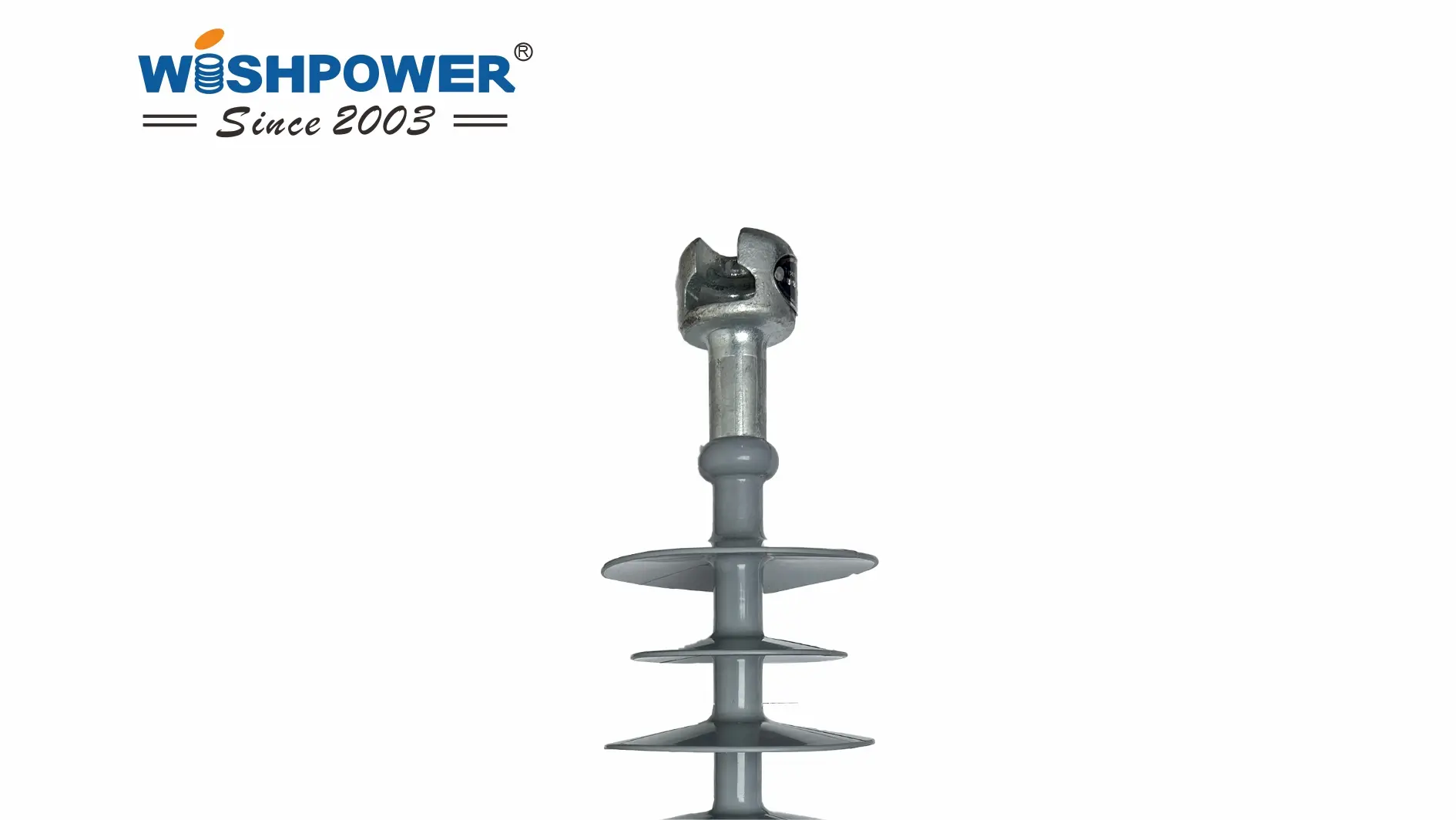

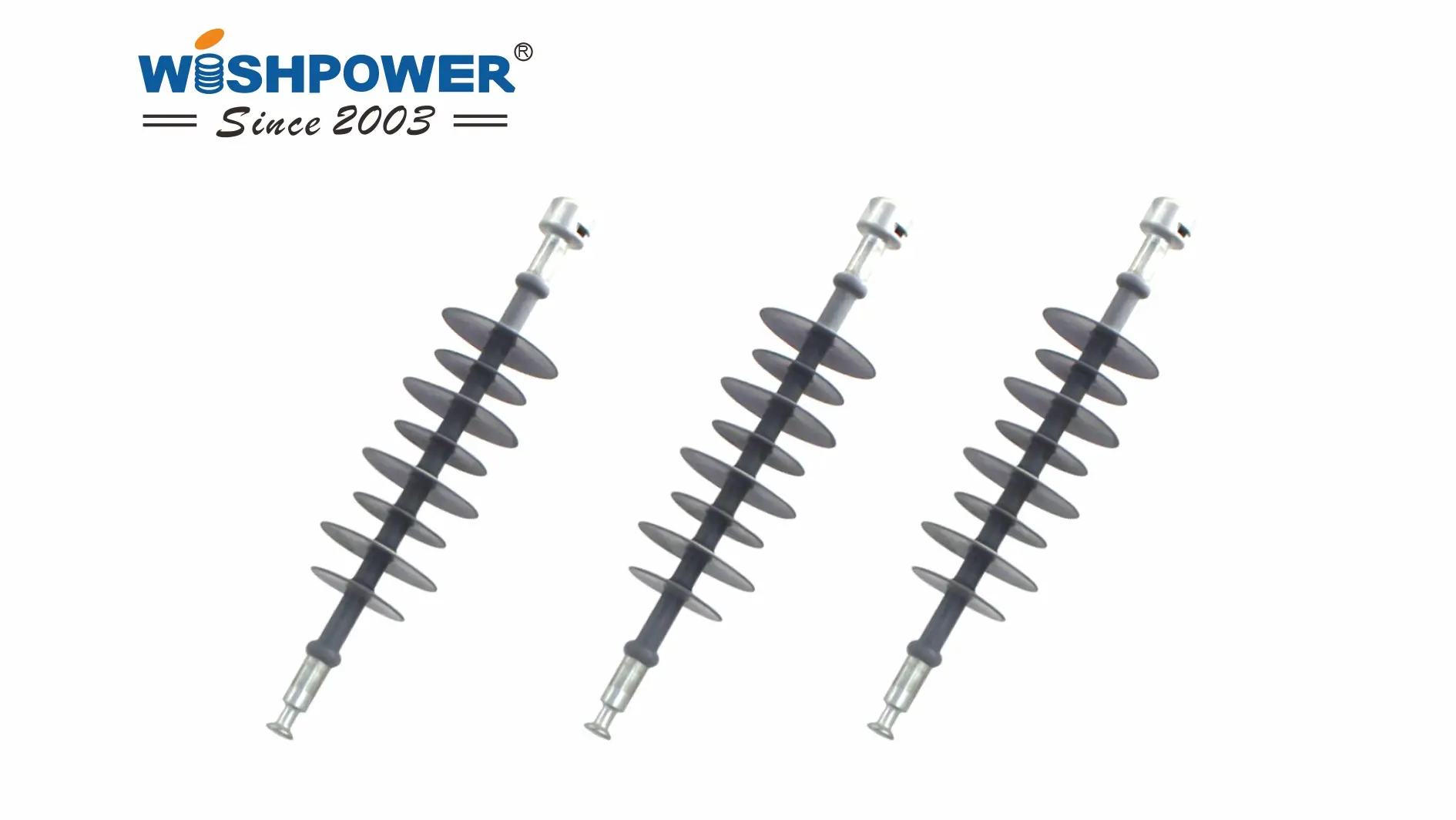

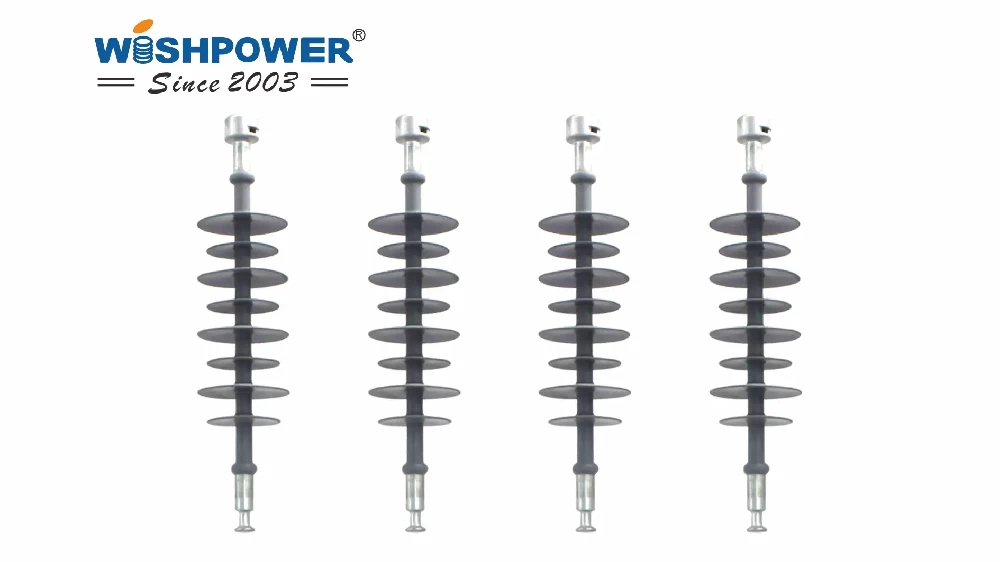

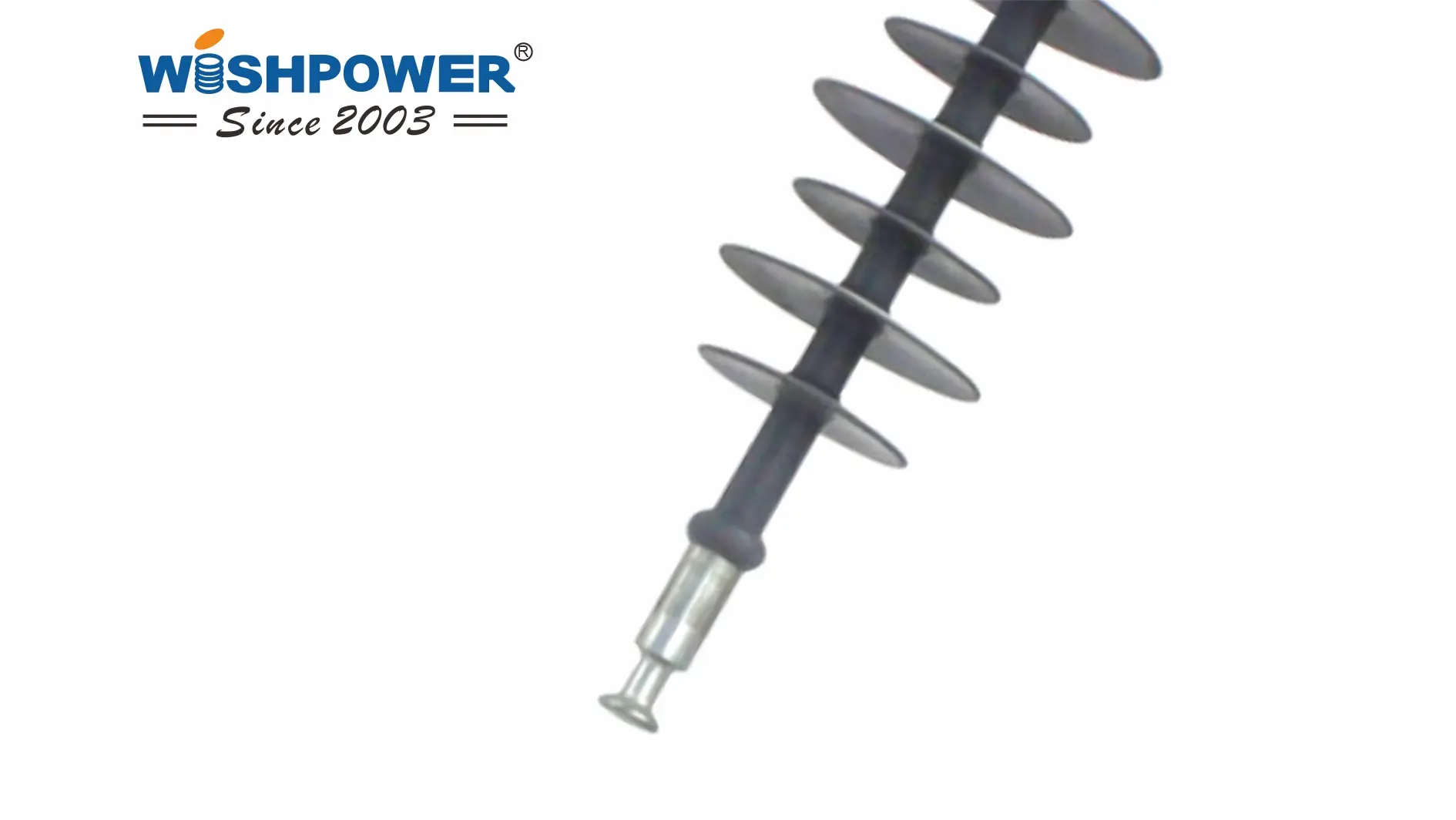

Transmission Suspension Insulator

Transmission Suspension Insulator is a project-oriented electrical product used where reliable operation, correct system coordination and suitable environmental performance are required. The final configuration should be selected from the actual electrical system, installation method, mechanical interface, operating environment and customer specification rather than from the product name alone.

WishPower supplies Transmission Suspension Insulator for utilities, EPC contractors, industrial users and international power projects. During technical review, the customer can provide drawings, single-line diagrams, reference specifications, interface dimensions and operating conditions so that the product configuration can be coordinated before production.

Product Features

• Electrical insulation and mechanical support can be coordinated for the exact line or substation duty.
• Creepage distance and external insulation profile can be selected according to pollution and environmental conditions.
• Mechanical rating is selected according to conductor, support or equipment loading.
• End fittings and interfaces can be coordinated with existing line hardware or equipment drawings.

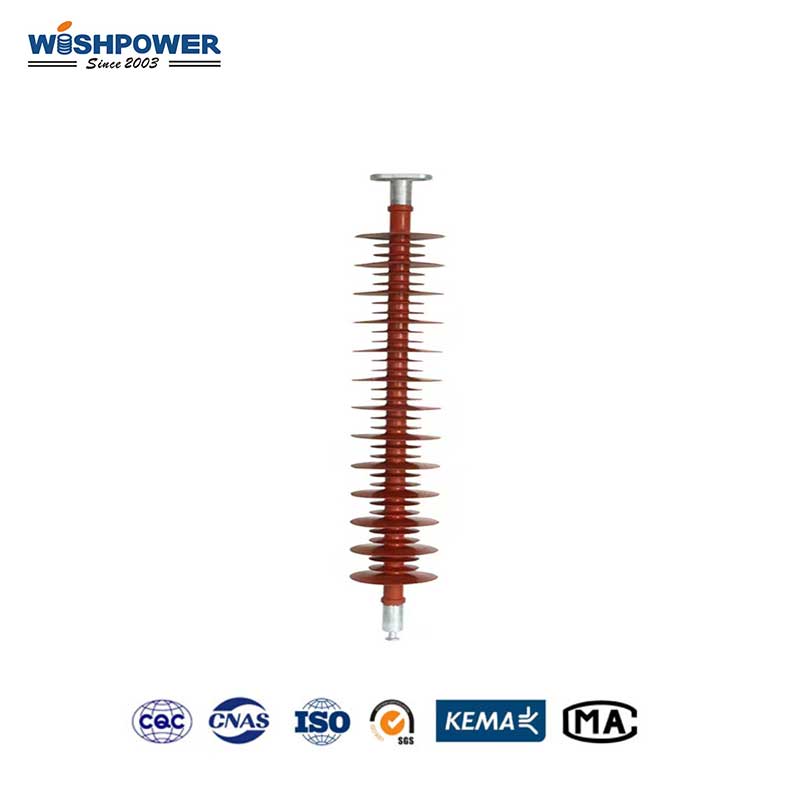

• Composite or polymer designs provide low weight and strong outdoor service capability where applicable.
• Marking, dimensional drawings and export packing can be customized for project identification.

Technical Specifications

Applications

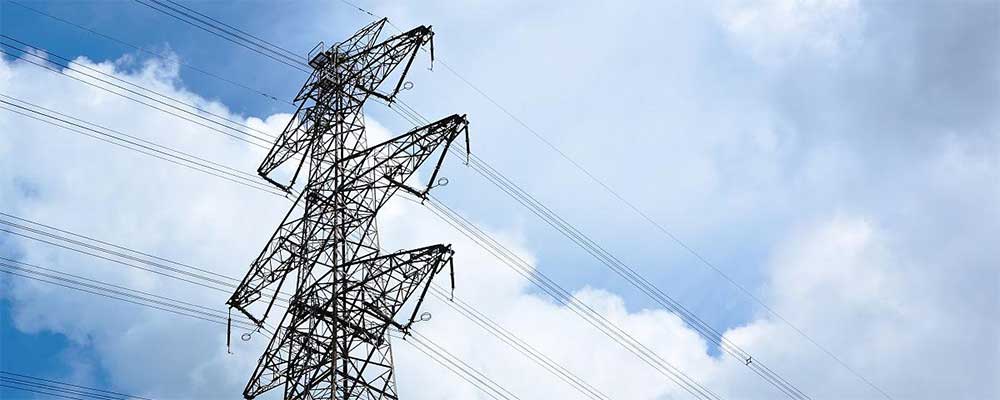

• Overhead transmission and distribution
• Substation insulation
• Line support and suspension positions
• Replacement and retrofit projects
• Industrial power networks

Insulator Selection

Voltage alone is not enough to select an insulator. Mechanical load, creepage distance, pollution level, installation orientation, hardware interface and overall dimensions should be reviewed together. For replacement projects, the existing drawing or sample dimensions are particularly important.

WishPower Project Support

WishPower supports project-based supply from inquiry and technical review through drawing confirmation, production coordination and export delivery. For Transmission Suspension Insulator, customers should provide the available specification, drawings, required quantity, application conditions and destination so that the configuration can be reviewed accurately.

Where an exact rating or dimension is not yet available, WishPower can first review the system information and identify the technical data that must be confirmed before quotation or production.
